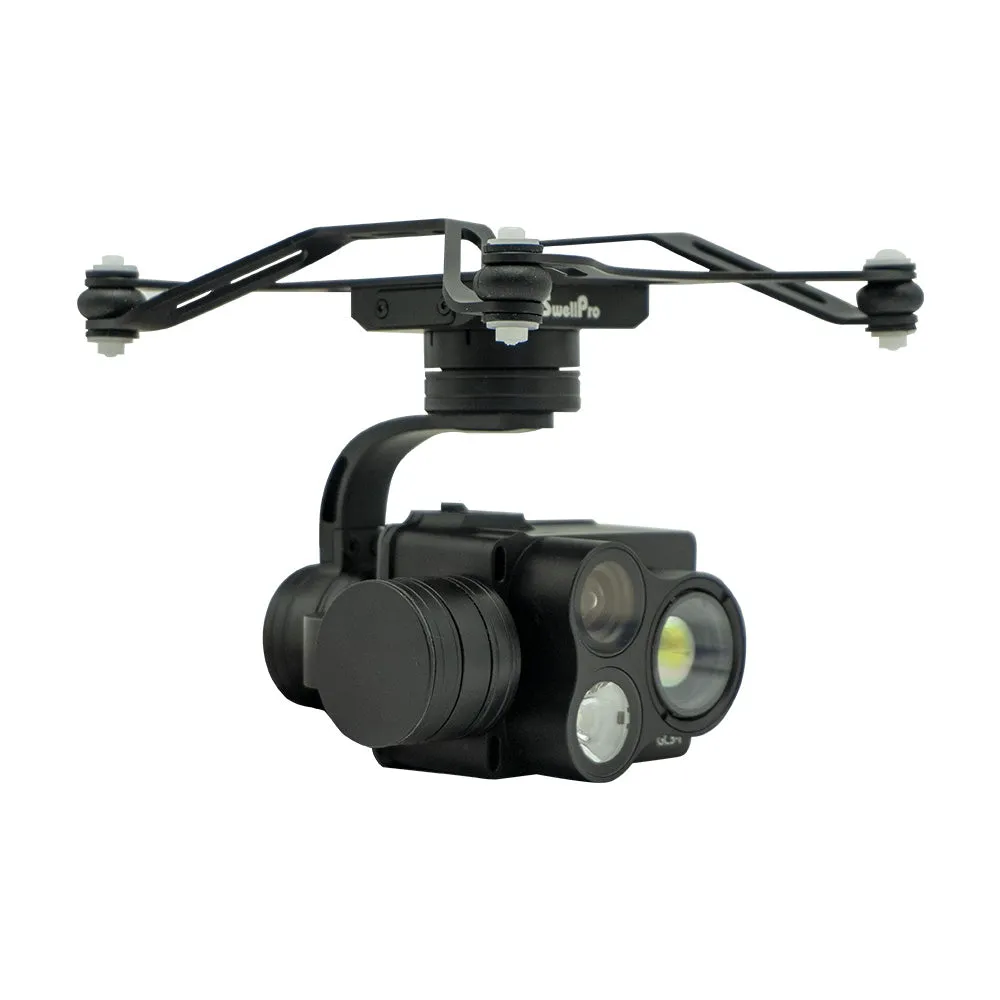

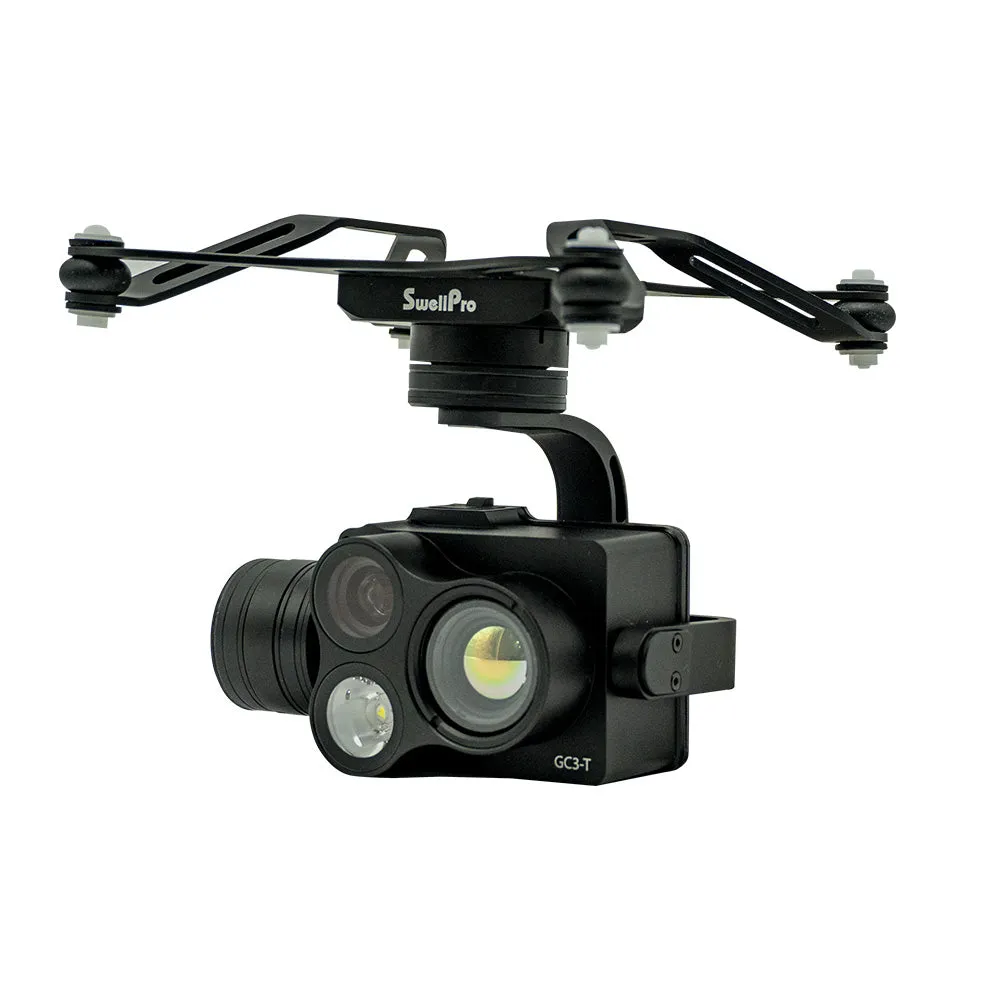

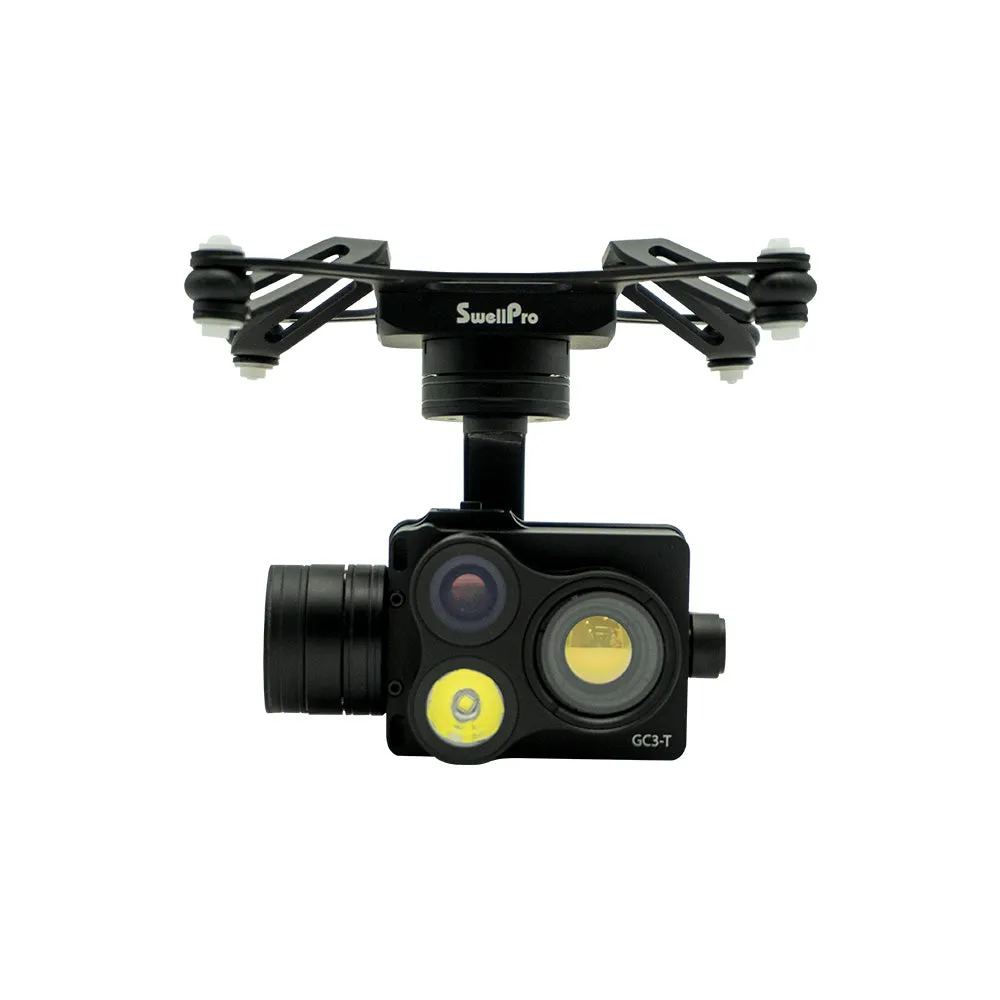

GC3-T Waterproof 3-axis gimbal thermal camera
See better

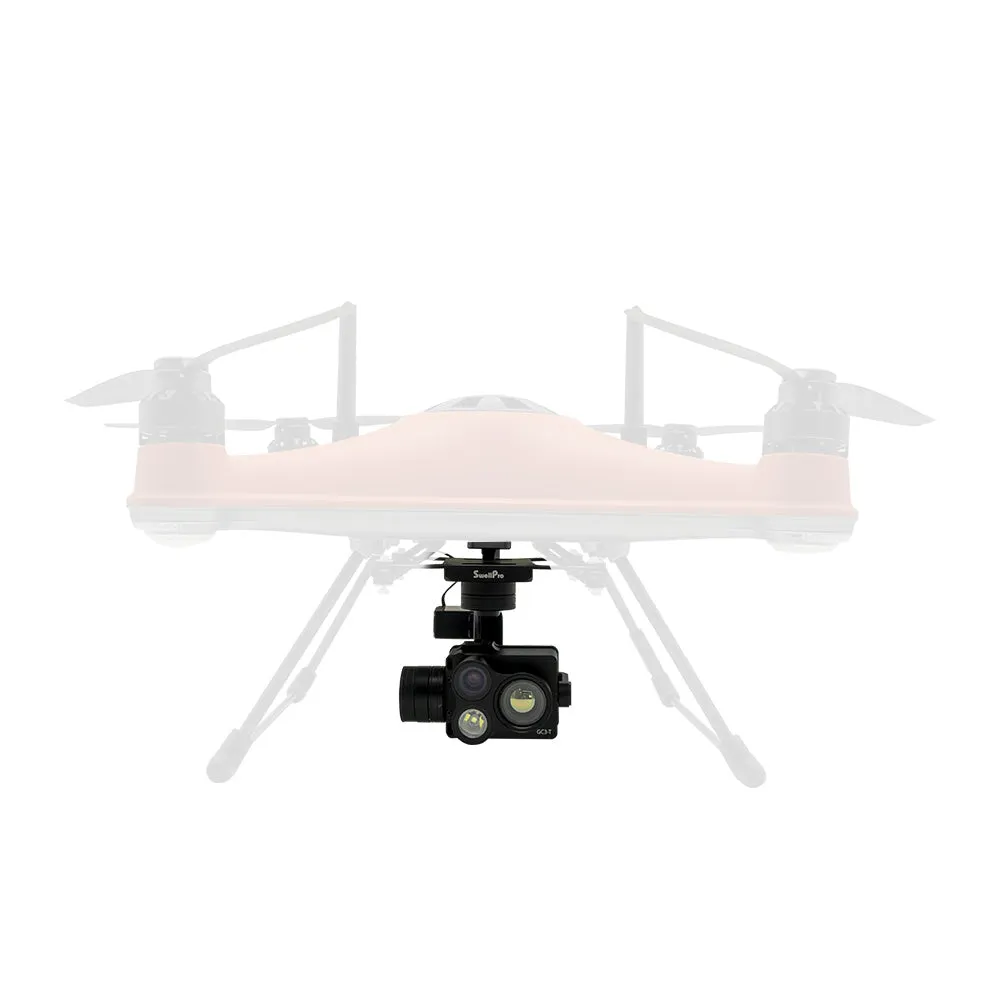

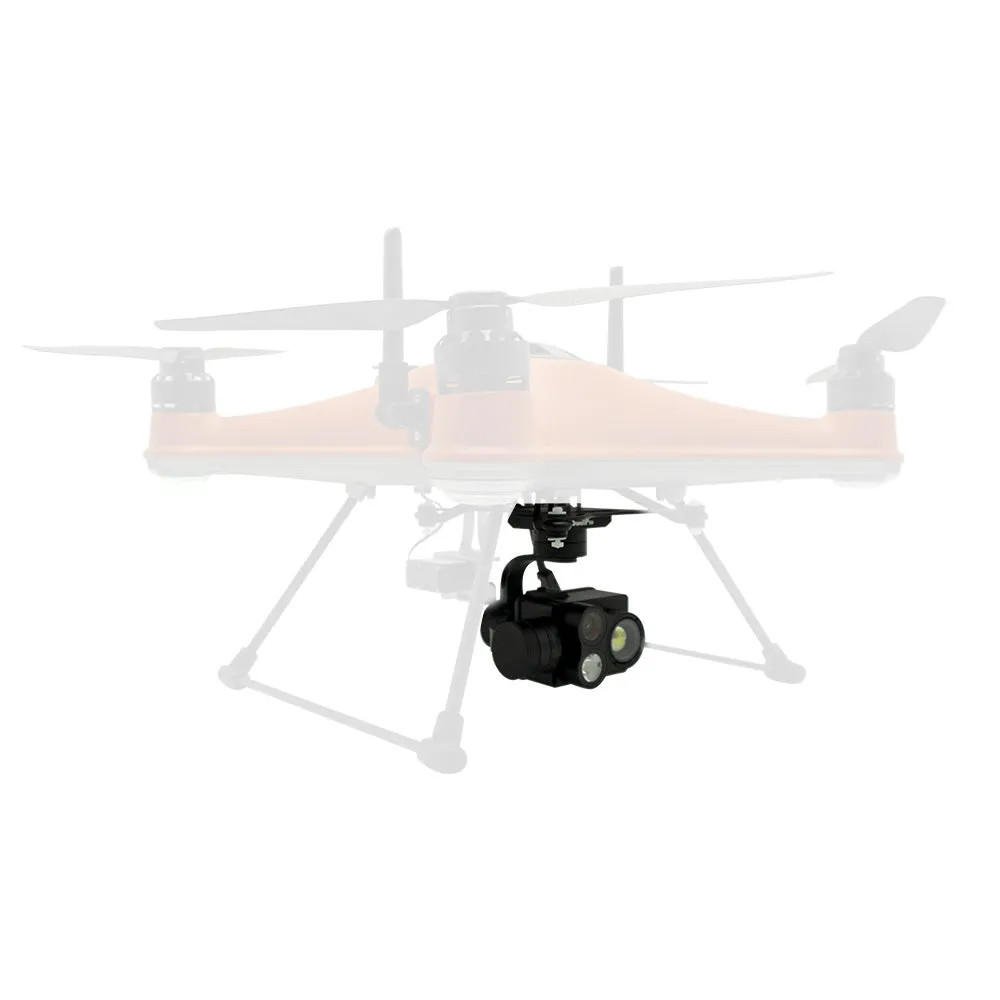

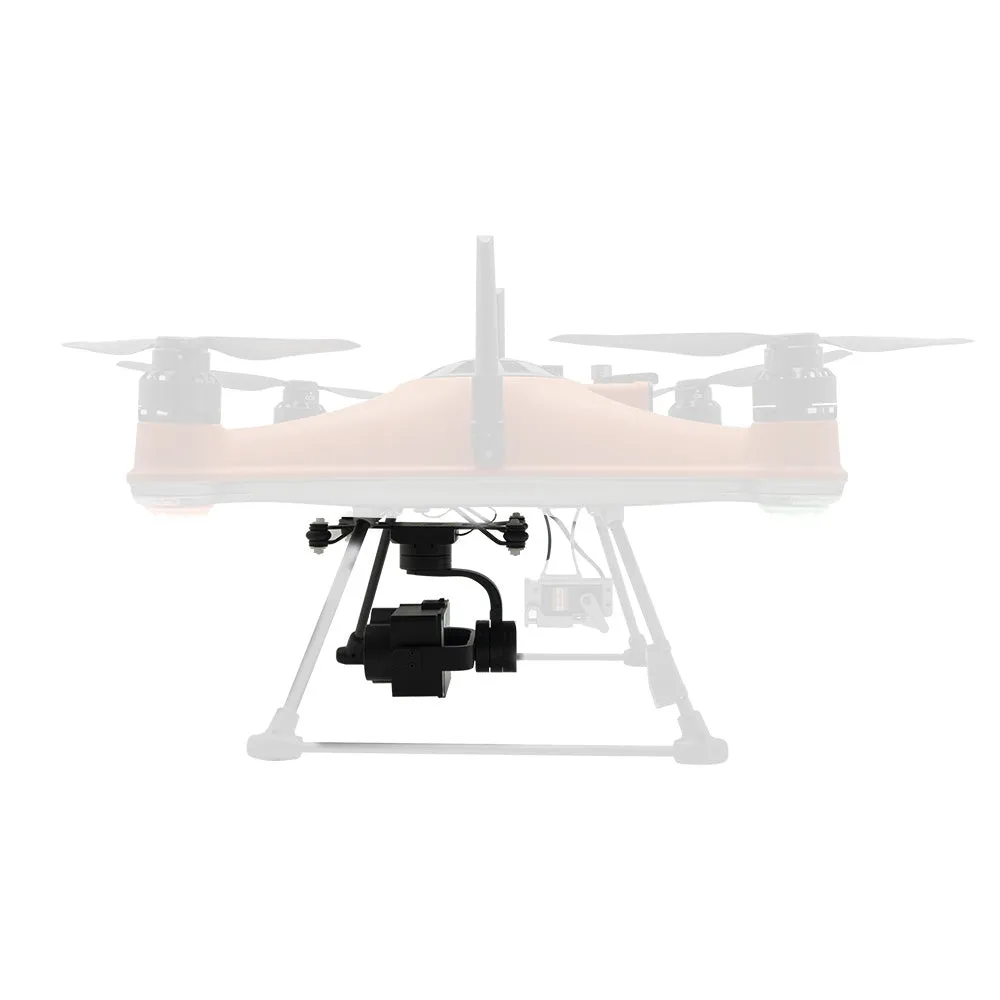

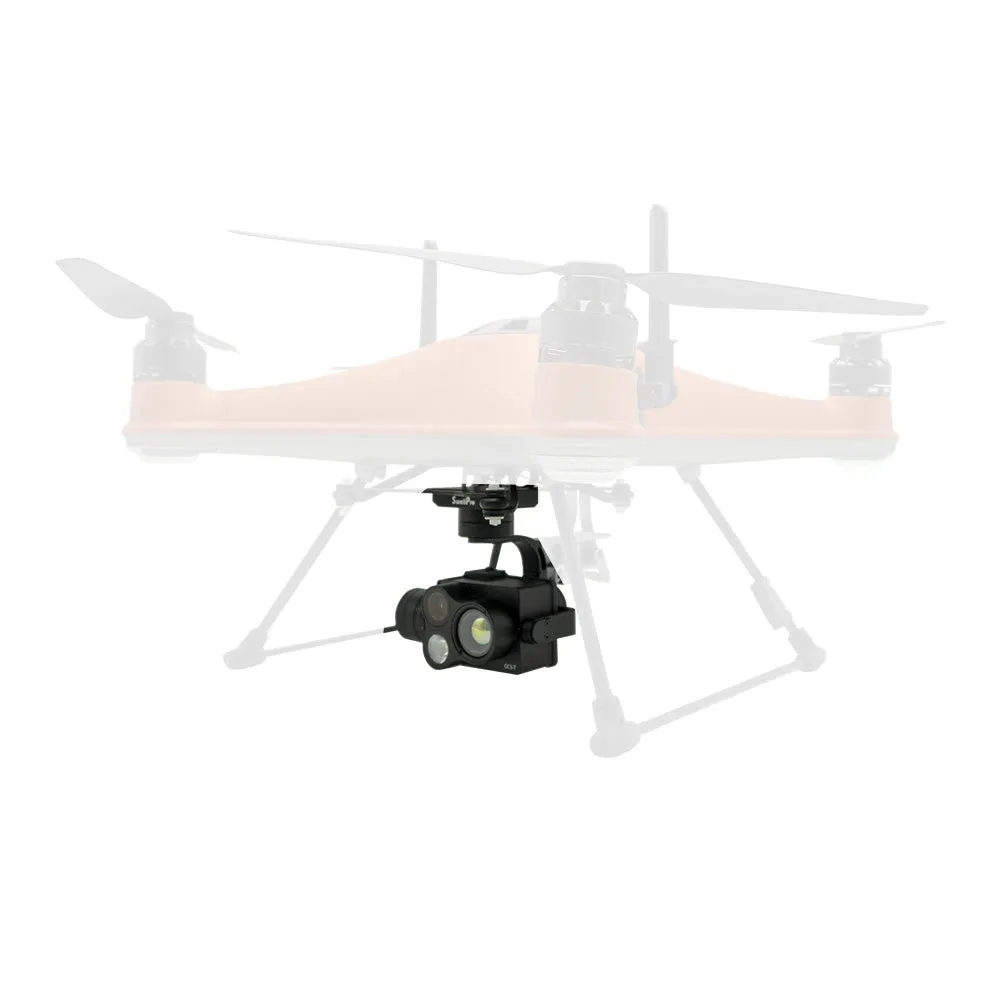

GC3-T waterproof 3-axis gimbal thermal camera combines both a high resolution thermal infrared camera and a full HD low-light camera with a dimmable LED flashlight, which can provide both infrared and visible light imaging simultaneously. Use the thermal imaging to identify the object of interest, then quickly switch to the low-light mode to better identify the object with more color details. The integration of GC3-T with SplashDrone 4 empowers lots of industries to accomplish their missions smarter and faster with far less risk and cost.
The thermal infrared camera features high resolution (640 x 512) and high sensitivity (≤ 50mk@f/1.0) infrared thermal images. It can detect temperature ranging from -20℃ to 150℃ / -4℉ to 932℉ with an accuracy of ±3℃ in real time.

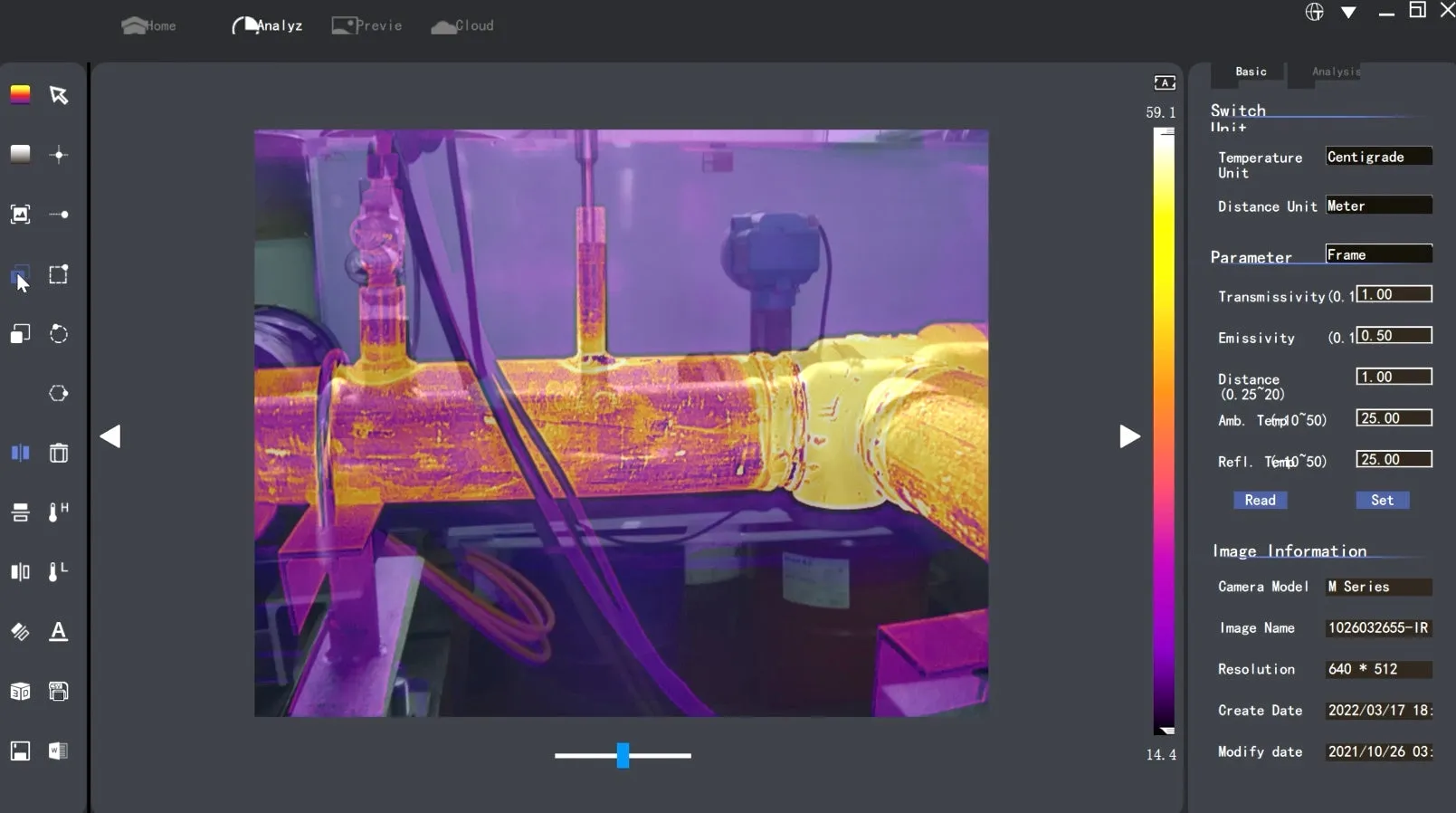

Temperature OSD
Real-time on-screen display of the maximum, minimum, average and center temperatures detected by the thermal camera.
Specification
General
Waterproof rating: IP67
Weight: About 430 g
Size: 134.5*134.5*117 mm
Memory card: Micro SD card: supports up to 128GB of capacity, write speeds ≥ 40 MB/s, recommend using Class 10 or above, or with UHS-1 rating.
Working temperature: -10°C - 40°C

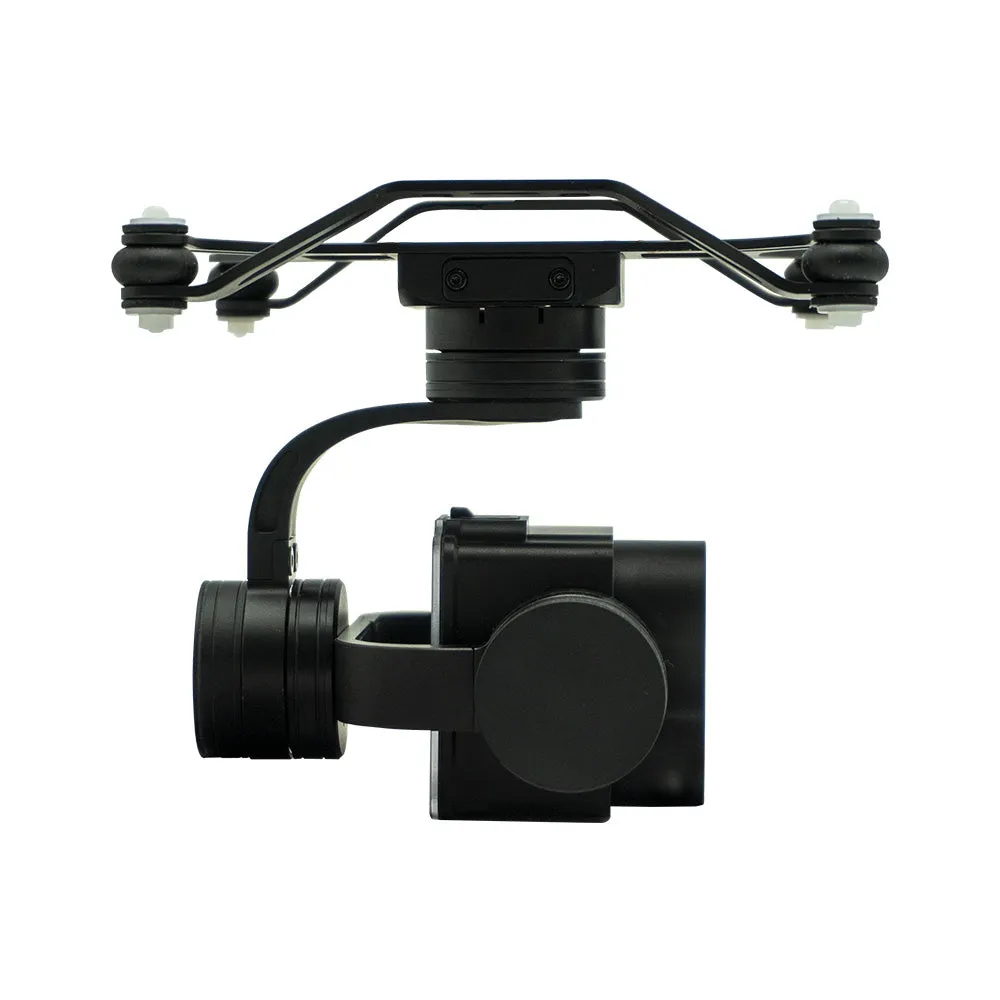

Gimbal
Stabilization: 3-axis (tilt, pan, roll).
Controllable range: Tilt: -90° to 0°
Max control speed: Tilt: 60 °/s
Thermal Camera
Thermal Imager: Uncooled VOx Microbolometer
Sensor Resolution: 640 x 512 @50FPS
Lens
Focal length: 19mm
Aperture: f/1.0
FOV: 22°H x 18°V
IFOV: 0.63 mrad
Pixel Pitch: 12 μm
Spectral Band: 8~14 μm
Sensitivity (NETD): ≤50mK @25℃, f/1.0 (≤40mK Configurable)
Scene Range: -20℃ to 150℃ (± 3℃)
Anti-flicker: Auto, 50Hz, 60Hz
Photo format: JPEG
Video format: MP4，MOV
Low Light Camera
Sensors: 1/2" 2M Starlight CMOS
Lens: FOV: 92.6°
Burst mode: 3/5/10 shoots
Video resolution: FHD: 1920*1080@50fps | HD: 1280*720@50fps
Anti-flicker: Auto, 50Hz, 60Hz
Max data stream: 64 Mbps
Photo format: JPEG
Video format: MP4，MOV
